EvoComp - the basis for success

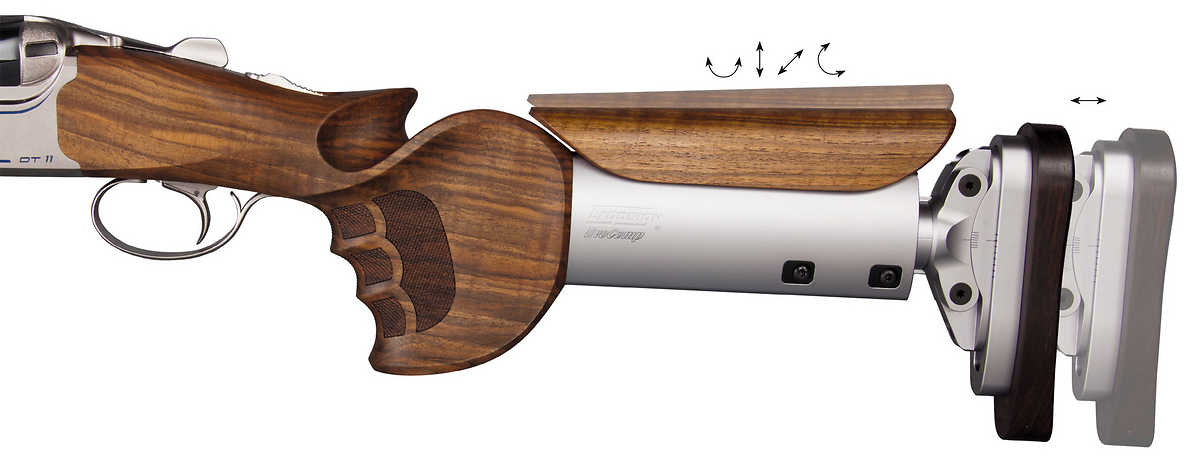

Picture: Beretta DT11 with grip in size L, comb R33, butt plate in grenadille, Dop of butt plate approx. 40 mm to 60 mm, middle section 4°

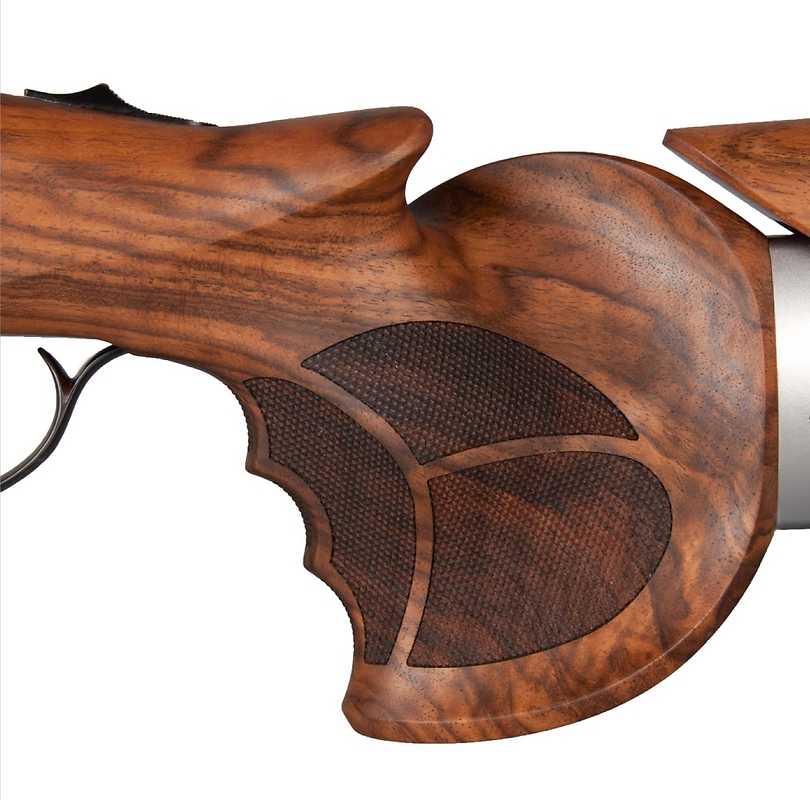

Ergonomic grips with beavertail, small thumb rest and slight palm swell

Ergonomic grips with beavertail, small thumb rest and slight
palm swell

With finger grooves and Rhomlas® surface structure in four different sizes (XL, L, M and S) or without finger grooves in the sizes L and S, with stippled surface as an individual custom-made fabrication according to a hand outline sketch or after a personal orthopaedic adjustment:
all our grips are produced for personal fitting to all different kinds of possible hand shapes.


More Grip types.


Comb

Comb

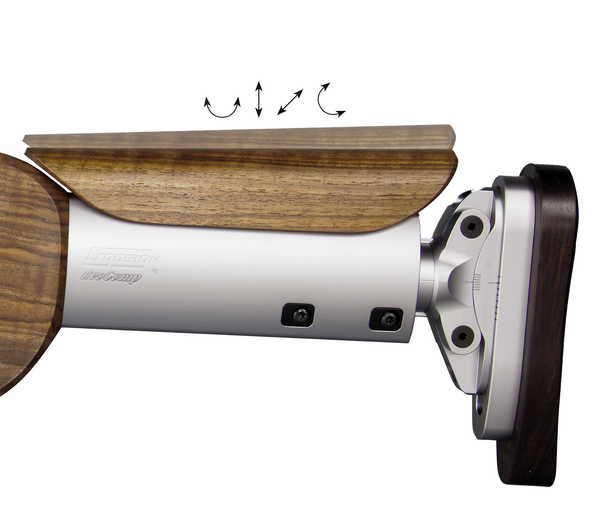

The correct position of the head to the rib is essential for a precise point of impact.
For this reason, the standard comb of 33 mm can be fully adjusted in height (drop) from approx. 42/46 to 36/36 (with a comb of 38 mm from approx. 37/41 to 28/28) and approx. 4 mm in width (cast +1 to + 5mm).

More Information.


Stock length

Stock length

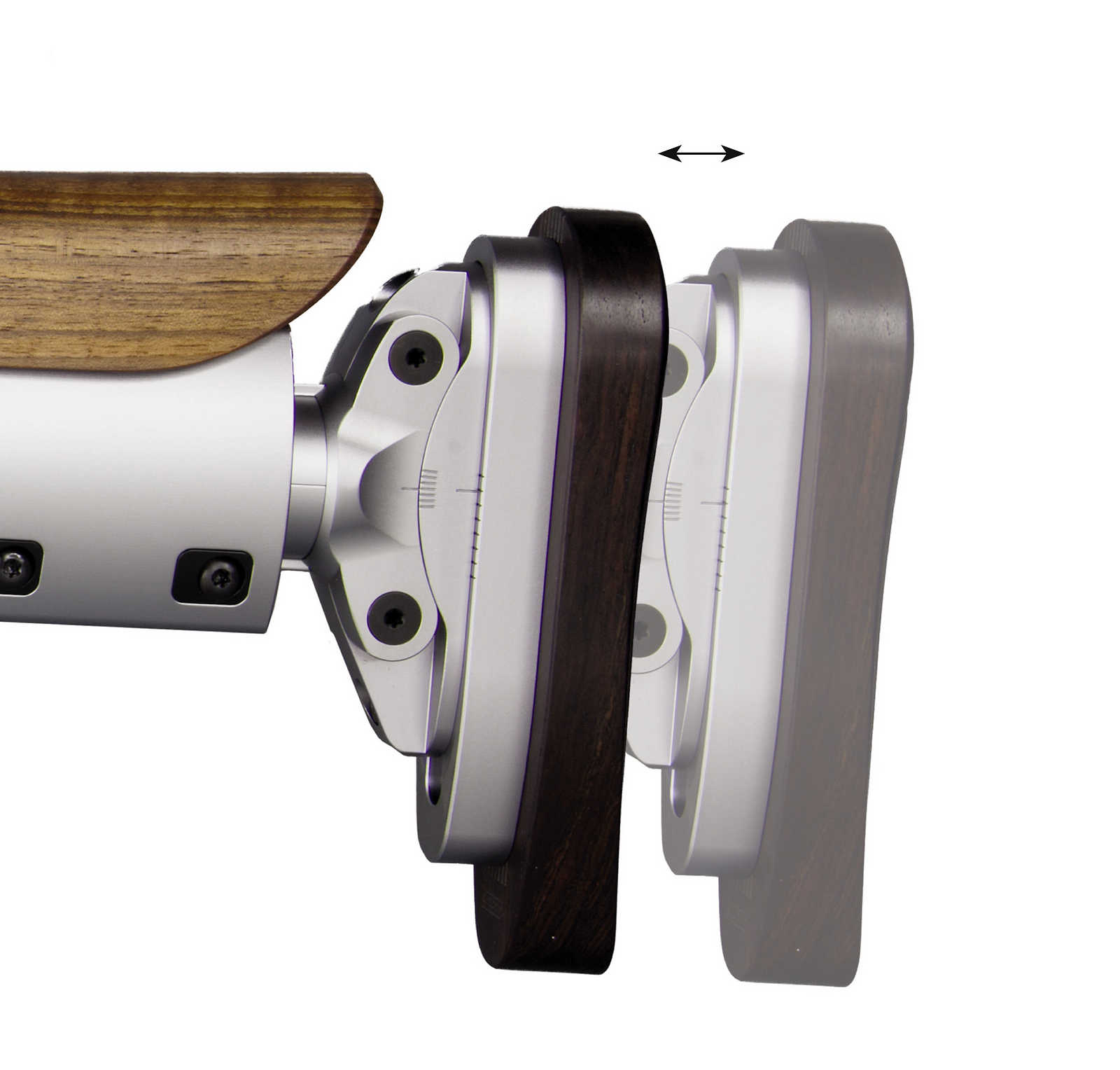

Having a range of adjustment from approx. 340 mm to approx. 390 mm, it is simple to fit the stock with the telescopic tube to the individual body size. Additionally, a shorter version for smaller shooters or for shooters with short arms of approx. 320 to 360 mm as well as a long version for very tall shooters with an adjustment range of approx. 360 to 430 mm are available.


Cast and Cast + 4 mm

Cast

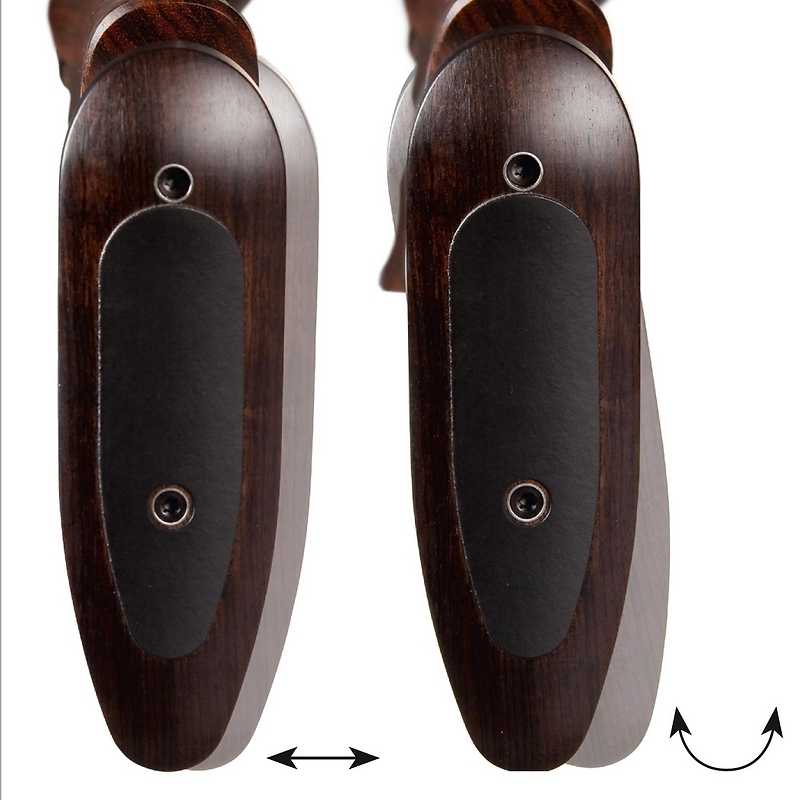

For up to 9 mm by adjusting the butt plate. Additionally the butt plate is rotatable by ± 10°.

Cast + 4 mm

For shooters with a short neck or a big chest measurement the additional cast of about 7-13 mm (standard 3-9 mm) optimizes the adjustmens to the body - to reach a higher comfort.

More Information.


Pitch adjustment and Pitch adjusting plate +4°

Pitch adjustment

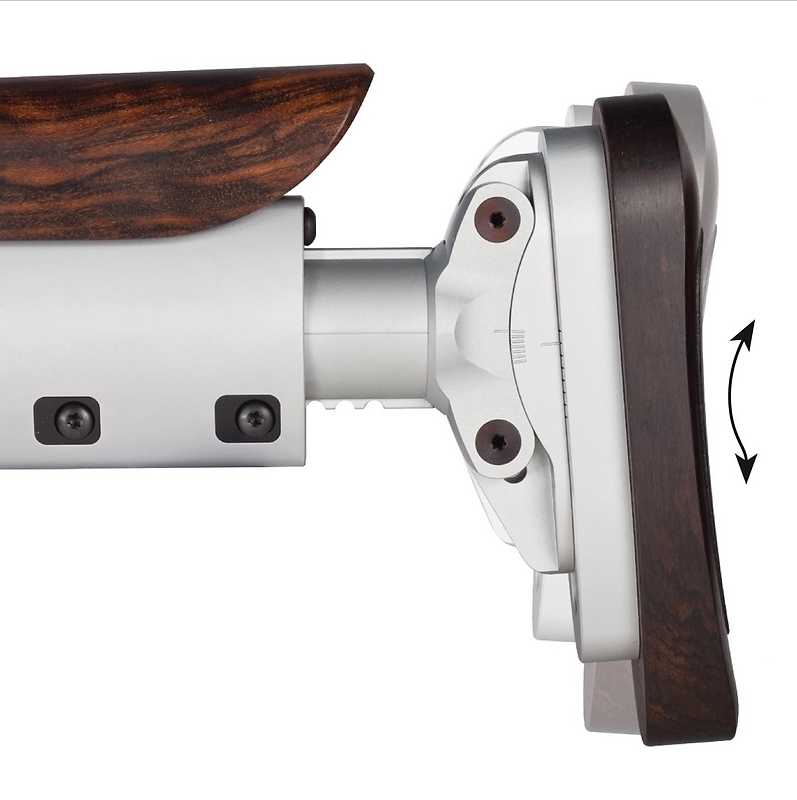

The pitch is fully adjustable by approx. 90°- 82°. Once it has been fitted correctly, the gun will remain in exactly the same position after a shot. This greatly increases the hit ratio on the second shot of the target pair.

Pitch adjusting plate +4°

An extended pitch adjustment of +4° is optional. For shooters with an upright shooting position and a big chest measurement the pitch can be additionally extended by 4° (can be recommended for a heightened middle section under 0° and for the TR version).

More Information.


Drop of the butt plate

Drop of the butt plate

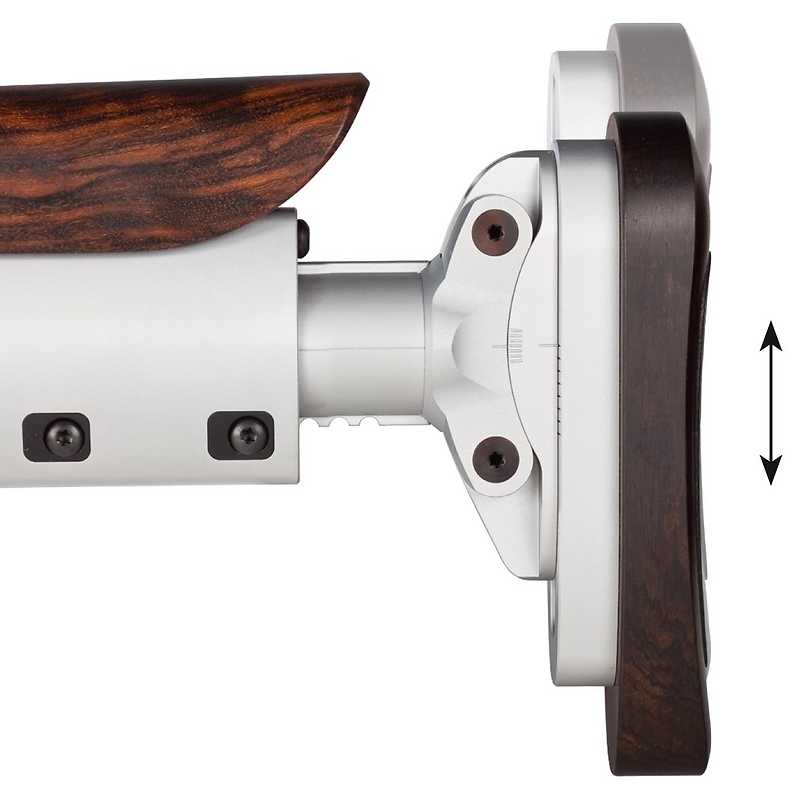

Depending on the length of the shooter’s neck and the mounting position, the level of the butt plate can be individually adjusted within a range of 40 mm to 58 mm. By mounting a higher clamping collar between the comb and the middle section the height of the butt plate rises proportionally.

More Information.
